PLC Controlled Rotary Paper Recycling Egg Tray Making Machine Pulp Molding Apple Tray Line Aluminum Molds Packaging Forming Machinery
Product Information

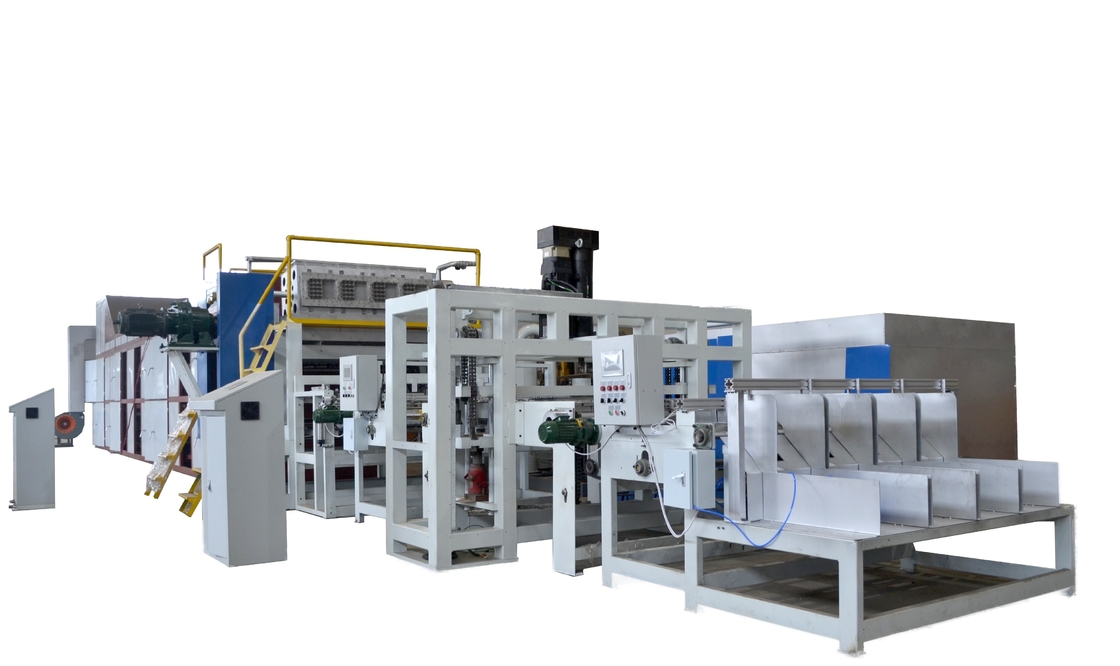

There are 2 models, semi automatic one without dryer and automatic one with metallic dryer for this egg tray machine production line.
Main sections of the paper egg tray machine:
1. pulping system:
Put the waster paper into the hydraulic pulper , the paper and water will mix in hydraulic pulper ,then go to the refiner machine, refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool, the pulp will go to the forming machine pulp tank .

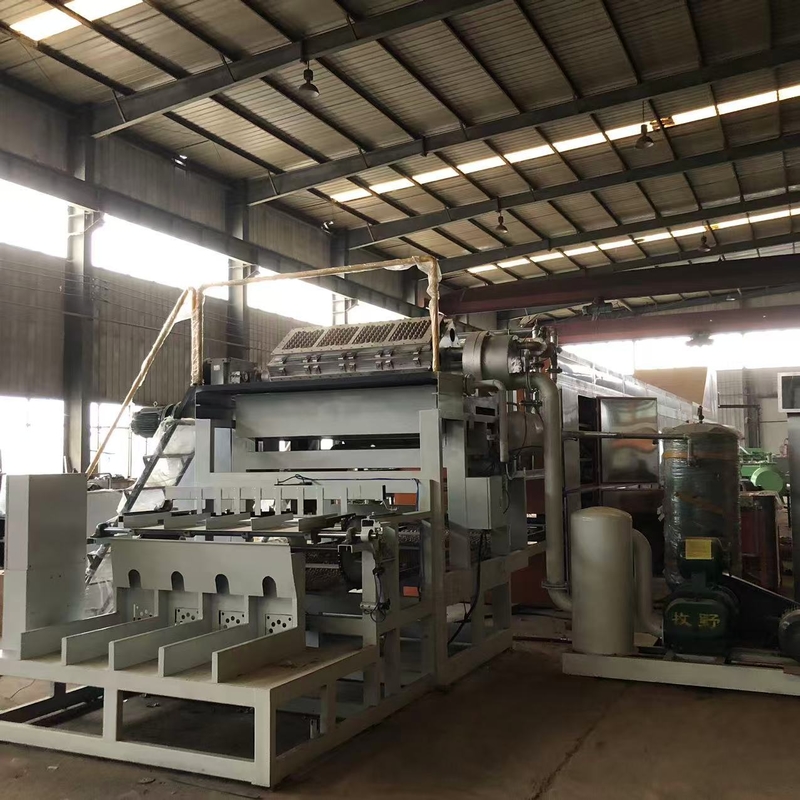

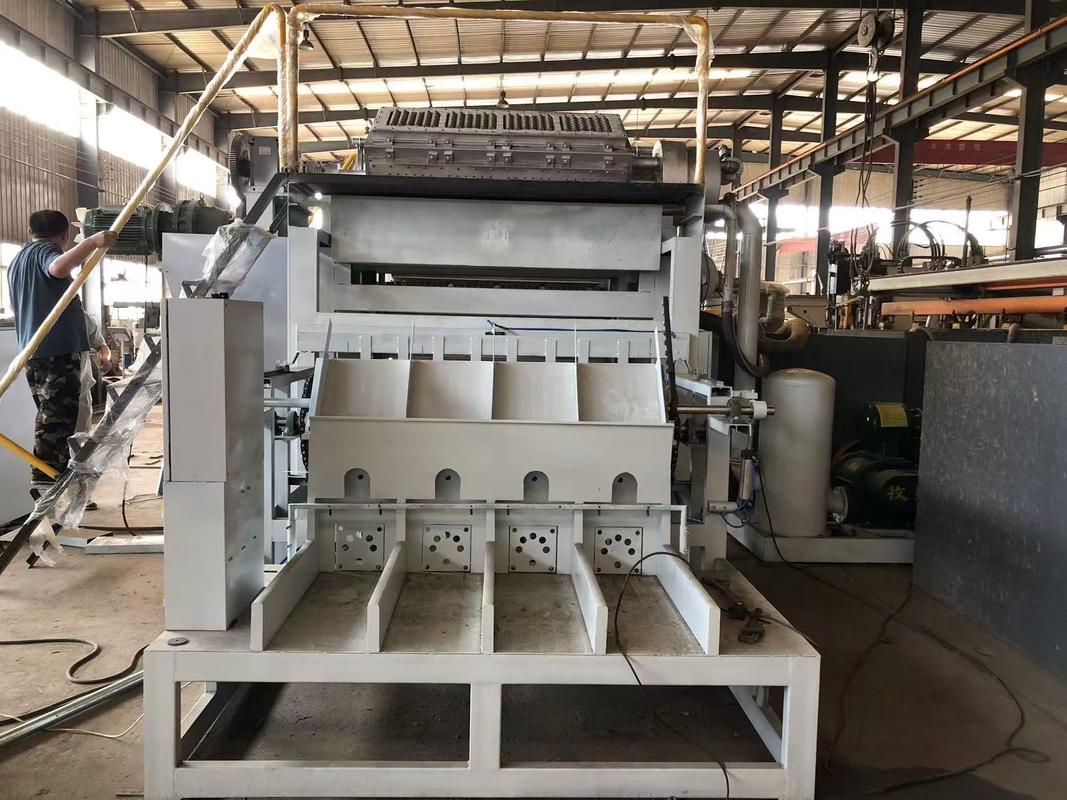

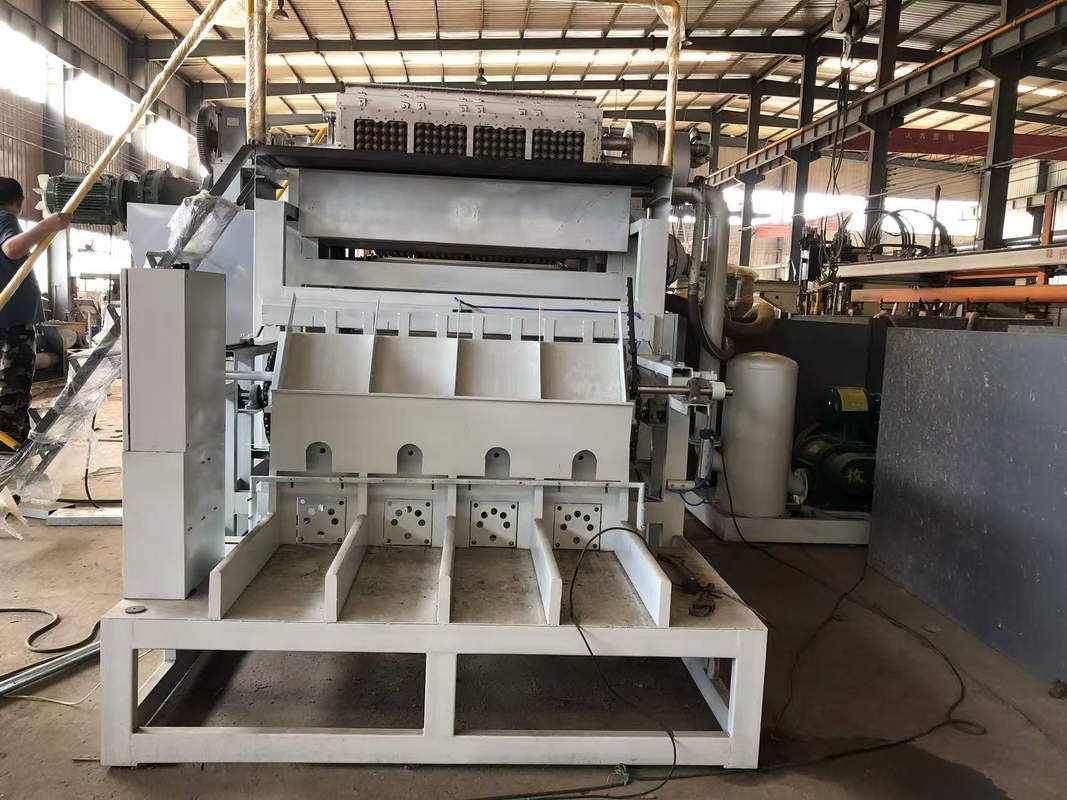

2. forming system
The Egg Tray Molding Forming System consists of various equipment and dies.
The wet forming section consists of a series of wire screen covered wet forming dies mounted on a molding drum, and a matching set of transfer dies mounted on a transfer mechanism.
The egg tray forming die is made up of rigid corrosive resistant metal or ABS engineering plastic and consists of many component parts that are drilled with small drainage holes and covered by prior to formed stainless steel screens.
3. Dryer system
There are burners and blowers on the two sides of the drying line.
can use gas,diesel,coal for Boiler burner
metallic dryer
Simple structure egg tray machine with cheaper investment
1*3 molds paper egg tray machine 1000pcs/h capacity forming part

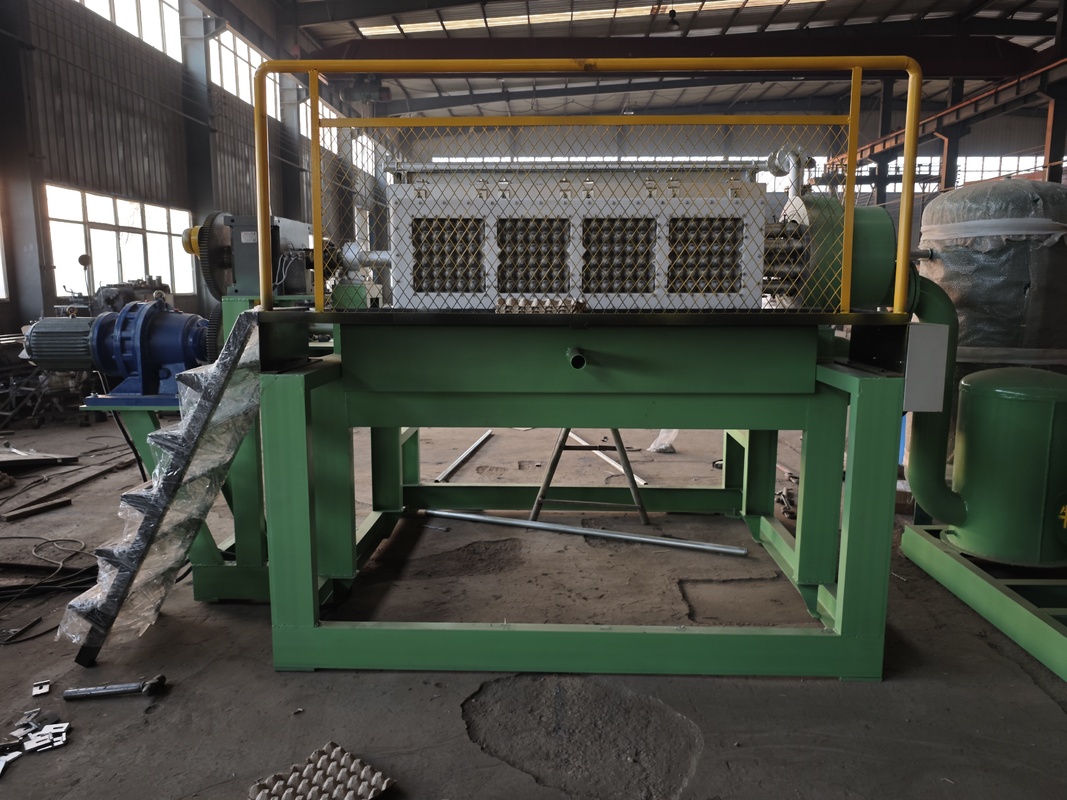

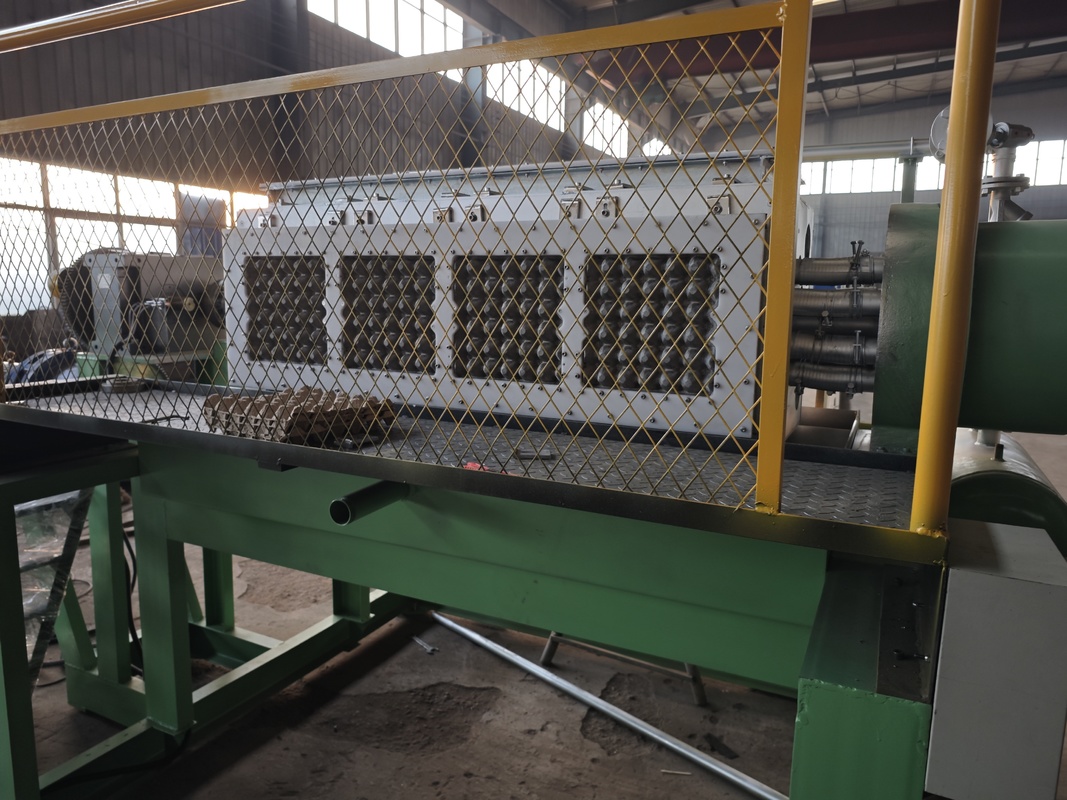

1*4 molds paper egg tray machine 1500pcs/h capacity forming part
Various capacity egg tray machine / egg tray production line we can make
|
Egg tray mould quantity
|
1pcs
|
2pcs
|
3pcs
|
4pcs
|
|
Raw material
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
|
Output for egg tray
|
350pcs/hour
|
700pcs/hour
|
1000pcs/hour
|
1300pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
70g-75g
|
70g-75g
|
70g-75g
|
|
The volume of waste paper consumed
|
0.025ton / hour
|
0.06ton / hour
|
0.1ton / hour
|
0.13ton / hour
|
|
The volume of water consumed
|
0.05ton / hour
|
|
0.15ton / hour
|
0.2ton / hour
|
|
Operators number
|
2-3workers
|
3-4workers
|
4-6workers
|
4-6workers
|
|
Area of workshop
|
More than 200M²
|
More than 240M²
|
More than 240M²
|
More than 240M²
|
|
Capacity of power
|
25KW
|
40KW
|
50KW
|
60KW
|
2500-3000pcs/h capacity 4*4 molds egg tray machine technical data
|
Egg Tray mould quantity
|
16pcs (4*4)
|
|
Raw material
|
Waste paper
|
|
Output for egg tray
|
2500-3000pcs/h
|
|
Net weight per piece
|
70g-75g
|
|
Waste paper consumption
|
225kg/h
|
|
Water consumption
|
0.68t/h
|
|
Natural gas consumption
|
60cbm/h in summer
|
|
Workshop dimension
|
>30M*W10M*H5M with dryer
|
|
Installed Power
|
114kw around
|
|
Motor efficiency
|
70% of installed power 114kw
|
|
Machine Weight
|
20 tons around
|
|
Egg tray Size
|
295mm*295mm 30eggs
|
End product of paper egg tray machine
Payment Terms
|
|
Delivery time
|
About 75 working days after receiving the deposit.
|
|
|
Payment term
|
BY T/T first advance40%, balance 60% be paid before machine delivery
|
|
|
Warranty time
|
1 year after the Egg tray machine received.
|
|
|
Container quantity
|
3*40GP container
|
|
|
Installation
|
|
1. Usually, all installation and debugging work will be done before shipment.
2. We will offer online support after sales services for problems during installation and testing.
3. Buyer needs to build underground type 2 water pools with size of 2.5m*2.5m*1.5m (L*W*Depth)and 2 pulp pools with size of 2.5m*2.5m*1.5m(L*W*Depth).
|
