Fully Automatic Paper Egg Tray Machine Price / Egg Tray Production Line 4000 pcs/hr Egg Tray Making Machine Small Business Idea
Product Information
This is a fully automatic egg tray production line with dryer. Dryer type is optional for brick dryer type, metallic dryer type.
Main sections of the paper egg tray machine production line:
1. pulping system: including the hydrapulper, vibrating screen, water pump, pulp pump, mixer with knife, etc..to make the wastepaper into paper pulp.

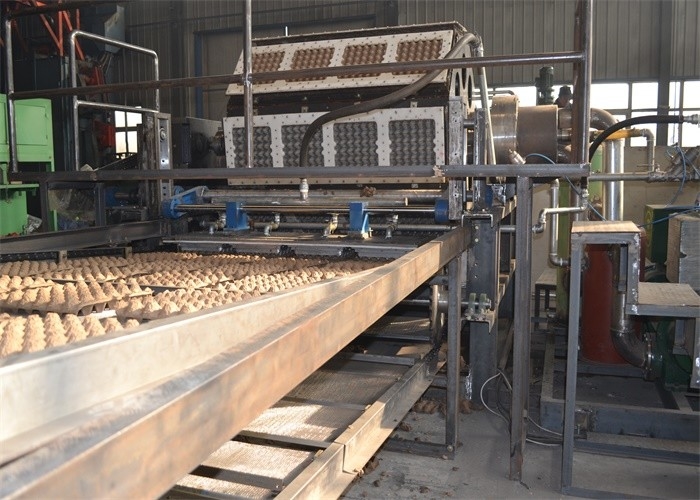

2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
4+8 molds paper egg tray machine forming part 4000pcs/h capacity

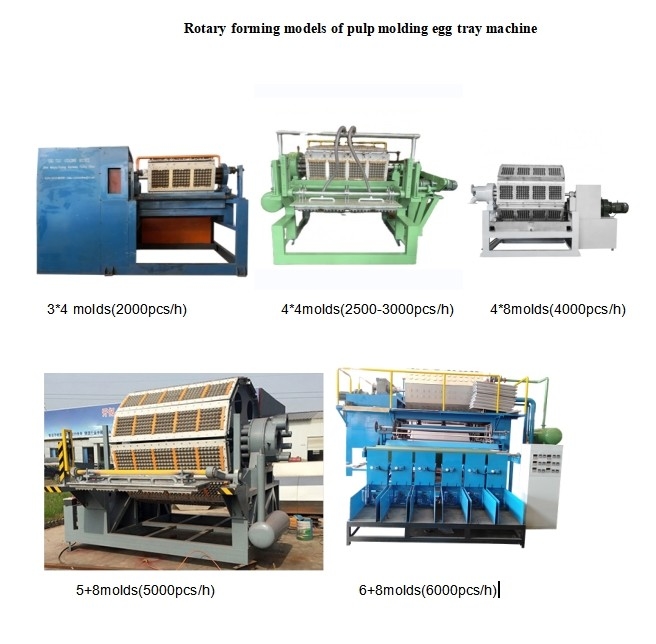

Other simple structure egg tray machine we can make
3*4 molds paper egg tray machine 2000pcs/h capacity forming part
4 *4 molds paper egg tray machine forming system 2500-3000pcs/h capacity
3. Dryer system for egg tray machine( Optional for customer)

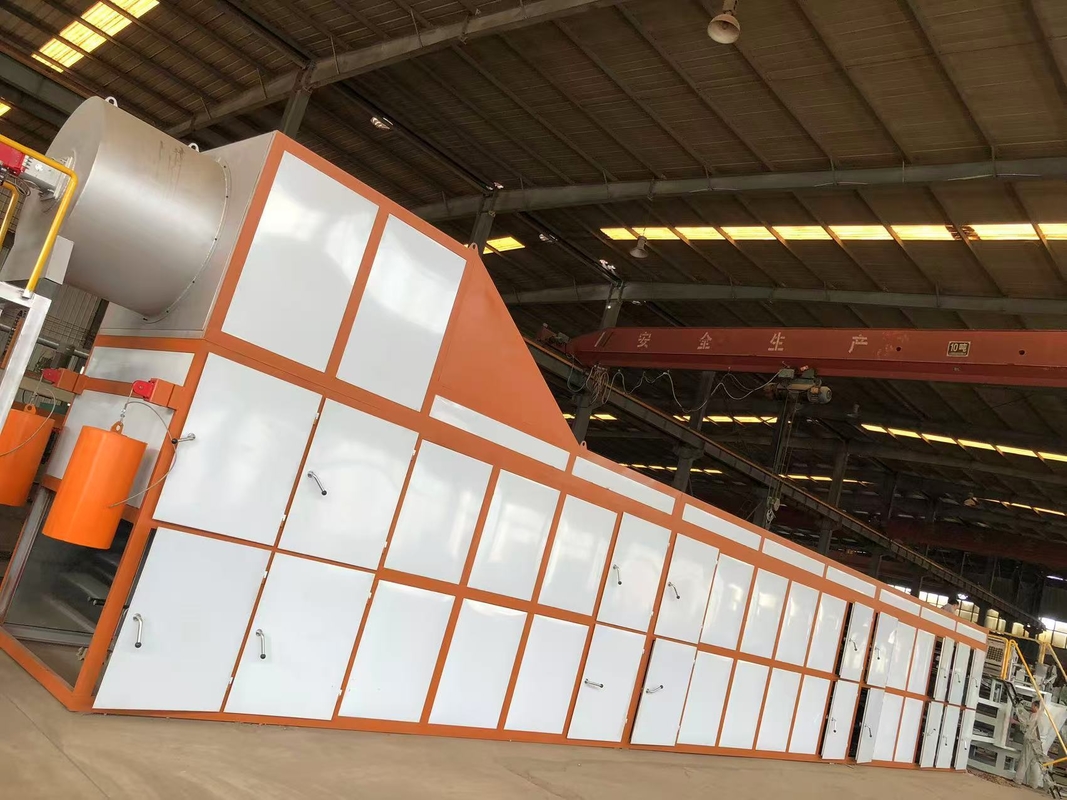

Metalic dryer model (4 layers, 6 layers, customized as per customer's needs) for egg tray machine
Single layer brick dryer type
Heat source (fuel) for egg tray machine dryer: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
Other Small Capacity Business Idea egg tray machine we can make
|
Egg Tray Mold Quantity
|
1pcs
|
2pcs
|
3pcs
|
4pcs
|
|
Raw material
|
Waste paper
|
Waste paper
|
Waste paper
|
Waste paper
|
|
Egg tray Capacity
|
350pcs/hour
|
700pcs/hour
|
1000pcs/hour
|
1300pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
70g-75g
|
70g-75g
|
70g-75g
|
|
Waste paper consumption
|
0.025ton / hour
|
0.06ton / hour
|
0.1ton / hour
|
0.13ton / hour
|
|
Water Consumption
|
0.05ton / hour
|
0.1ton/hour
|
0.15ton / hour
|
0.2ton / hour
|
|
Natural Gas Consumption of Dryer
|
12cbm/h
|
25cbm/h
|
35cbm/h
|
50cbm/h
|
|
Worker requirement
|
2-3workers
|
3-4workers
|
4-6workers
|
4-6workers
|
|
Power Requirement
|
Without dryer
|
20KW
|
30KW
|
40KW
|
45KW
|
|
With dryer
|
30KW
|
45KW
|
60KW
|
65KW
|
|
Area of workshop
|
Without dryer
|
More than100M²
|
More than 100 M²
|
More than 120 M²
|
More than 150 M²
|
|
With dryer
|
More than200 M²
|
More than 240 M²
|
More than300M²
|
More than 320 M²
|
|
Container Requirement
|
Without dryer
|
20ft*1
|
20ft*1
|
40ft*1
|
40ft*1
|
|
With dryer
|
40ft*1+20ft*1
|
40ft*2+20ft*1
|
40ft*2+20ft*1
|
40ft*3
|
|
Remarks:
1. The Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client's plant.
3.The above specification is for reference only, due to continuous technology development, data will be updated from time to time.
4.Paper Pulp Molding Machine are non-standard equipment, we are able to provide customized solution according to specific requirements from customer.
5.Welcome to contact us anytime, our professional team will provide more effective help and supports for you.
|
|
4000pcs/h capacity 4*8 molds egg tray machine production line technical data
|
Egg Tray Mold Quantity
|
32pcs(4pcs*8 faces)
|
|
Raw material
|
Waste paper
|
|
Egg tray Capacity
|
4000pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
|
Waste paper consumption
|
300kg / hour
|
|
Water Consumption
|
0.9ton / hour
|
|
Natural Gas Consumption of Dryer
|
120cbm/h
|
|
Worker requirement
|
8-10workers
|
|
Machine Length
|
40m-50m
|
|
Machine weight
|
Around 43tons
|
|
Power Requirement
|
With dryer
|
150KW
|
|
Area of workshop
|
With dryer, dryer-30m
|
More than 520M²
|
|
Container Requirement
|
With dryer
|
40hq*3+20ft*1
|
|
Remarks:
1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.
|
