Lugar de origem:
Jinan, Shandong, China
Marca:
RUNLIANG
Número do modelo:
Rl-wlj
Various Model Paper Egg Tray Machine Paper Pulp Molding Machine Customized Molds
Egg Tray Machine Product Introduction
It has Automatic and semiautomatic egg tray pulp molding 2 types.

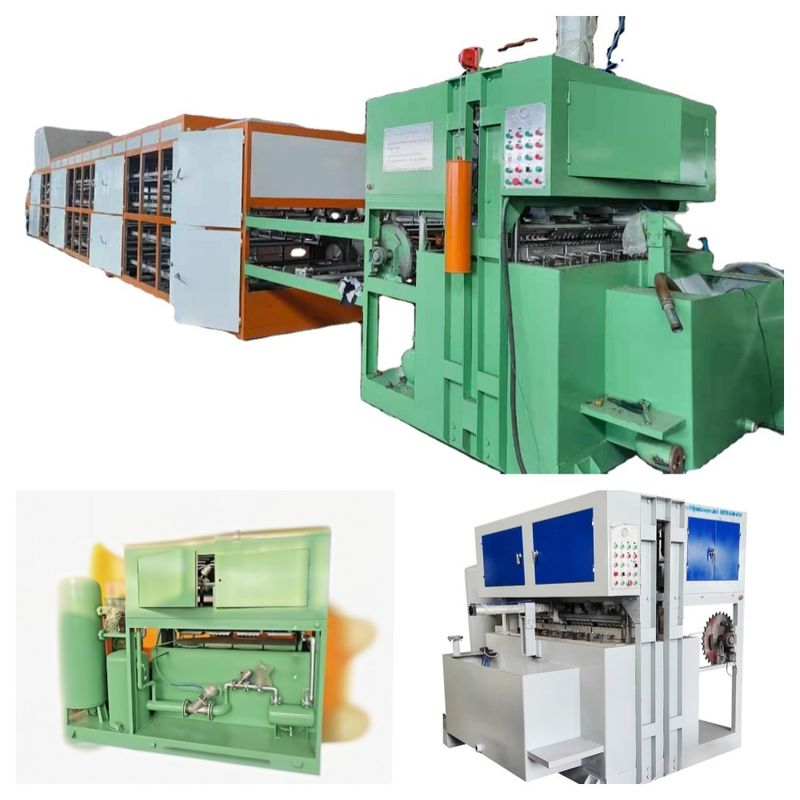

Pulp Moulding Machine/ Egg Tray Machine production line, a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production.
Our forming machines adopts advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.
Techinical Parameters of 4*8 molds 4000pcs/h capacity egg tray machine/production line
Egg Tray Mold Quantity |
32pcs(4pcs*8 faces) |
|
Raw material |
Waste paper |
|
Egg tray Capacity |
4000pcs/hour |
|
Net weight per piece (gram) |
70g-75g |
|
Waste paper consumption |
300kg / hour |
|
Water Consumption |
0.9ton / hour |
|
Natural Gas Consumption of Dryer |
120cbm/h |
|
Worker requirement |
8-10workers |
|
Machine Length |
40m-50m |
|
Machine weight |
Around 43tons |
|
Power Requirement |
With dryer |
150KW |
Area of workshop |
With dryer, dryer-30m |
More than 520M² |
Container Requirement |
With dryer |
40hq*3+20ft*1 |
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |

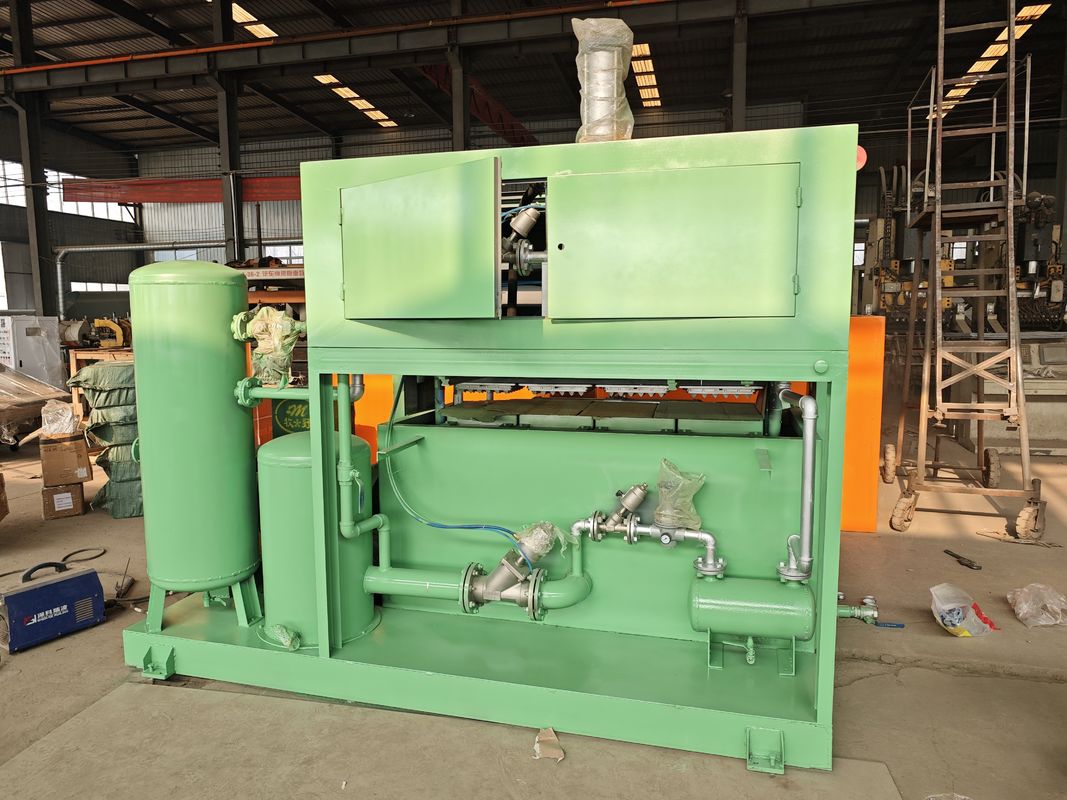

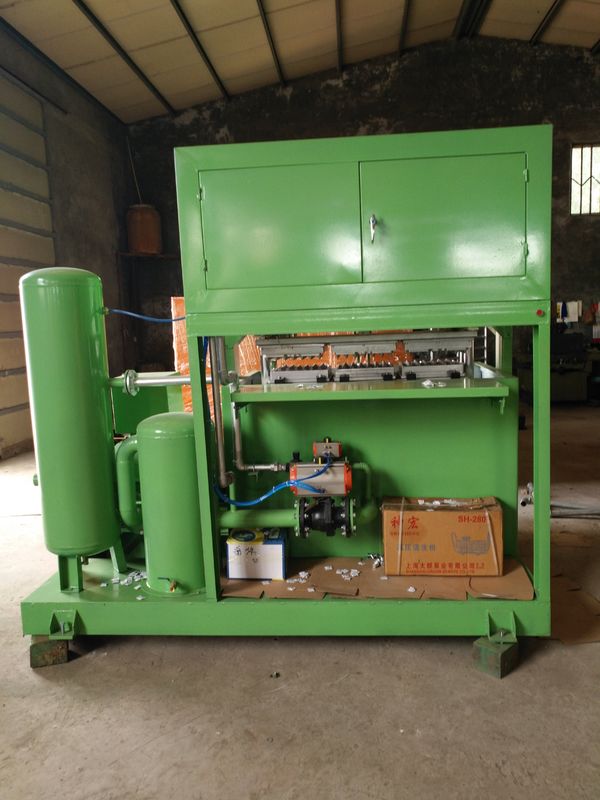

Pulp Forming Machine
Dryer system of egg tray machine:
dryer boiler of the egg tray machine should use fuel like natural gas, diesel, coal, wood, LPG. Customer must choose one fuel to get correct buying cost of the whole setting up machine.
Advantages of our machine:
1). Controlled by automatic computer soft ware
2). No need for infrastructure construction, machine can start running only after connecting some pipes, power and water, and preparing the material
3). Some parts are Germany brand or other famous brand
4). Our egg tray machine can make different trays at same time by using different moulds
5). Besides egg tray, fruit trays, our machine also can produce industrial package
6). All installation and debugging work will be done before shipment.
7). 20 years' experience on egg tray machine
Payment Terms
Delivery Time: 70 working days after getting payment Payment Terms: 40% T/T prepayment in advance. 60% before delivery by T/T. |
||||
Warranty time |
1year after the Egg tray machine received. |
|||
Terms of delivery |
EXW Jinan, China |
|||
Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
